Model 9
Advanced noise reduction
Excellent heat insulation
180° opening angle
Break-in protection
Coordinating inner caps
2 year warranty after installment
Technical characteristics
-
Outside panel2 types and colors of outside panel
-
The perimeter of the door leafMade of zincked steel with polymer powder coating thickness 1 mm
-
Eccentric adjusterHigh level of sound insulation
-
Tamper resistanceAnti-removable pins from hinges side
-
FillingMineral wool
-
Compaction circuit2 sealing circuits (on the canvas and on the door frame) - for additional sound insulation
-
Door frameReliability provides by metal door frame thickness 1,5 mm
-
Dimensions2100х900mm ; 2100х1000mm
-
Inside panelsSame designs of interior doors from BELWOODDOORS collections
-
HardwareWelded hinge with roller bearing Fuaro T1/141-20, Handle Fuaro
In detail about Model 9
The Model 9 is an entrance door:
metal frame: frame profile width — 77 mm, metal thickness — 1 mm;
frame-welded construction;
2 seals;
slab thickness varies from 82 to 92 mm depending on the type of internal lining (milled MDF panel 6-16 mm);
the external panel material is MDF;
the exterior finish is PVC (polyvinylchloride) or wear-resistant enamel.
We use mineral wool, which has low thermal conductivity values, as an internal filler. Its additional advantage is fire safety: the material does not ignite even at 450 °C.
The strength and reliability of the fabric are responsible for ribs filled with thermal insulation. In addition, these, together with the anti-release pins on the hinge side and the two three-bar locks, reinforce the burglary resistance.
This door has a peephole and an additional “night” lock.

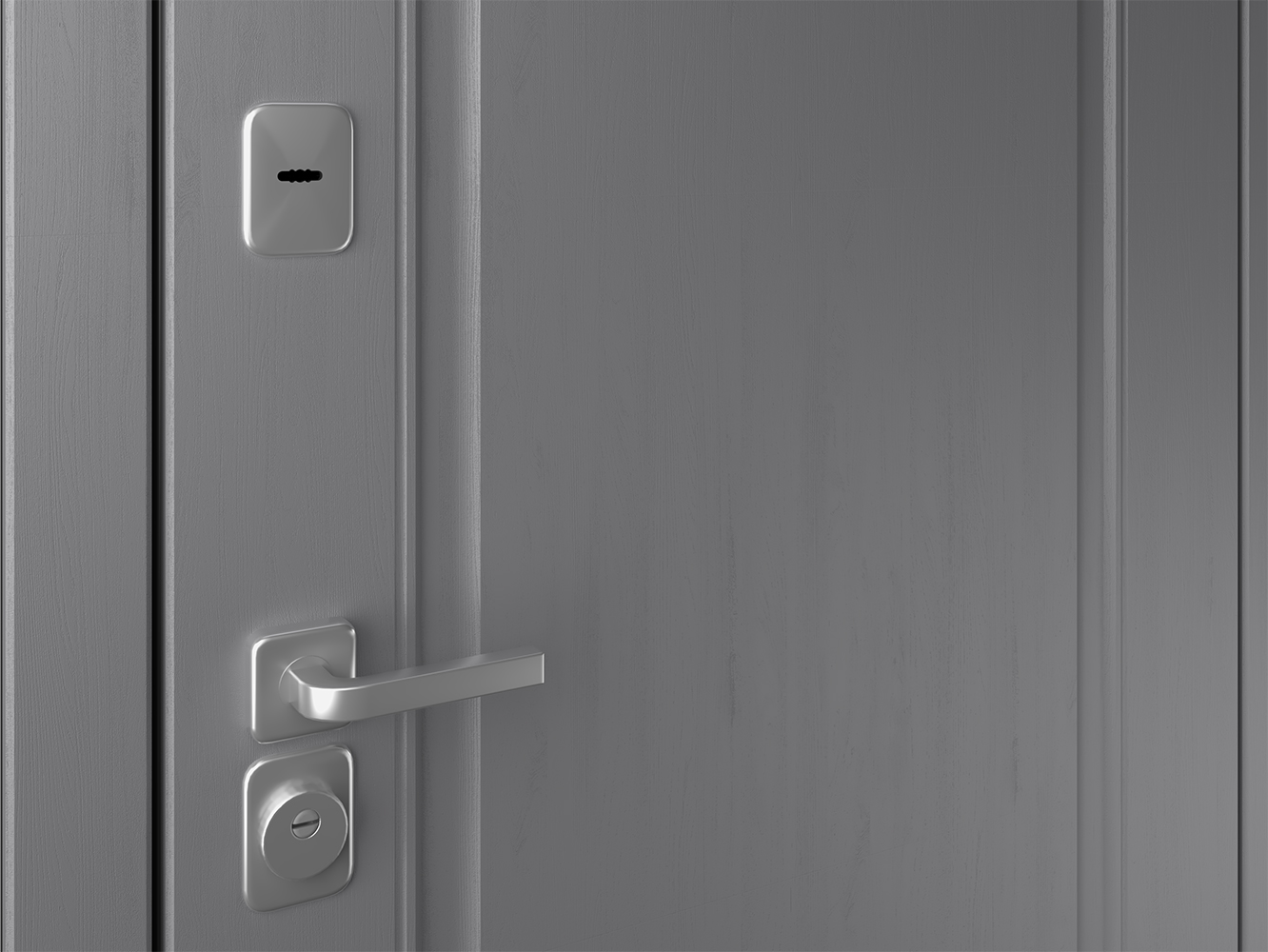

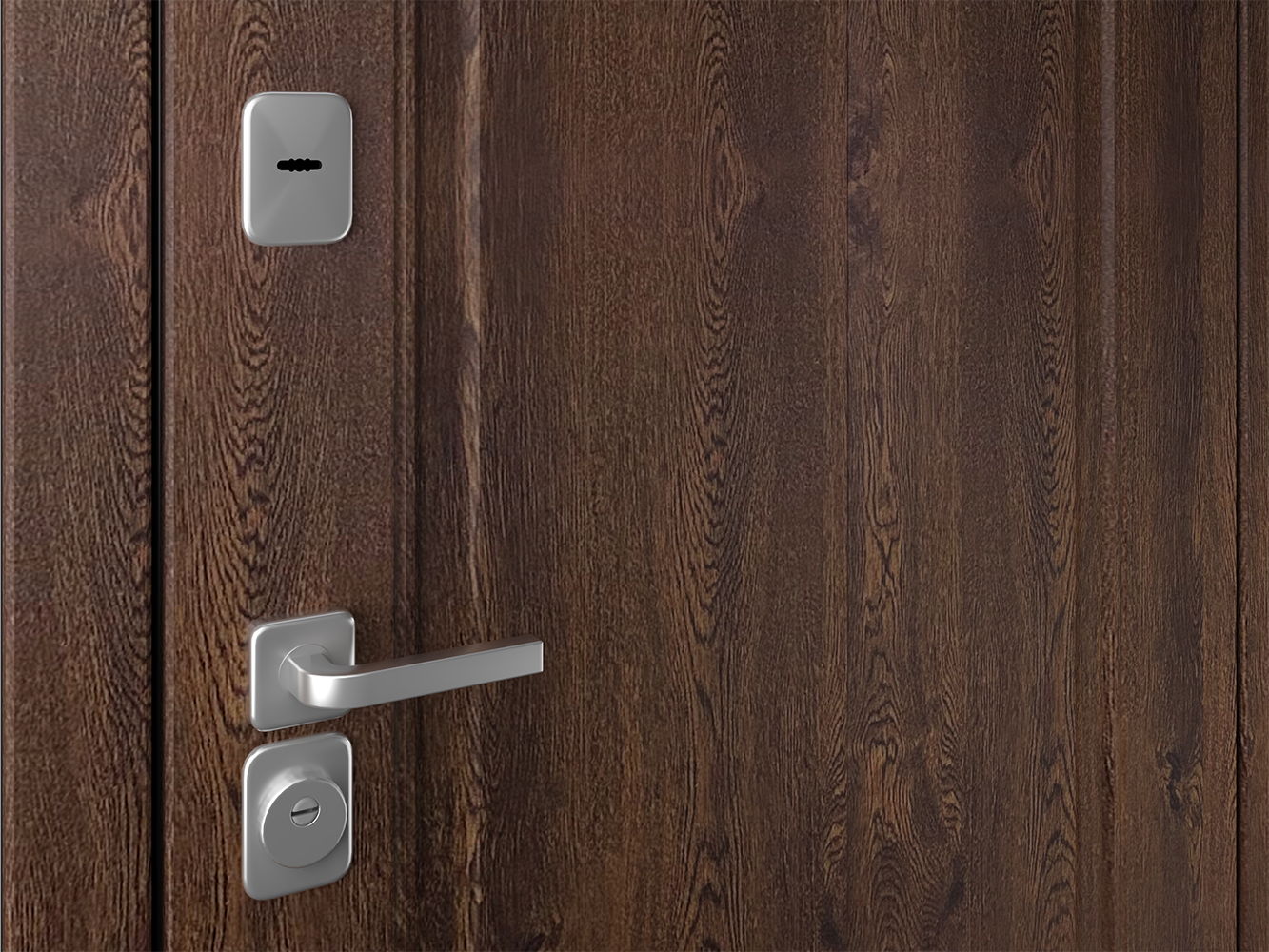

Hardware
The hardware kit includes:
split handle;
2 locks (security class 4);
hinges with a bearing provide a firm hold, facilitate the opening/closing process and prevent the slab from sagging.
Finishing
Exterior and interior colours: custom enamel (RAL catalogue).
Entry door configurations
RELIABILITY
A door leaf represents structure that is made of unibody sheet metal thickness 1 mm. The doors reliability provides by metal door frame thickness 1,5 mm. Inside the door, where locks are, the transversal and longitudinal ribs also from metal sheet are welded.
DURABILITY
Door leaf is filled in by the layer of polyurethane thickness 58 mm, which ensures stiffness of the door leaf, endurance, good sound insulation and heat transmission resistance. Unlike rock mineral wool, polyurethane filling doesn’t change its form. It doesn’t cause allergies. The lifetime of this material is around 40 year!
EASTHETICS
Outside MDF panel thickness 16 mm is covered by decorative finishing of German production. The inside panels have the same designs as interior doors from BELWOODDOORS collections.
COMFORT
Comfort and safety directly depends on the quality sealing form. The door frame has unibody curved 3-stepped form, with rubber seal guarantying high level of sound insulation. For metal door leaf is used the Swedish production seal.
SAFETY
From the hinges side, in the door end there are anti-removable pins don’t allow to open door slab even after cutting off the hinges. The lock covers for 4-th level security locks provide the highest protection level!
A VARIETY OF CHOICES
Diversity of inside panels with the same designs of interior doors from BELWOODDOORS collections.
